Evaluation Board | AP1302CSSL00SMGAH3-GEVB

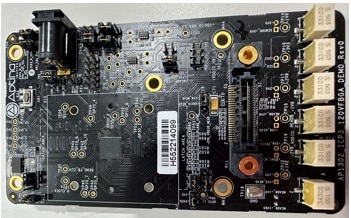

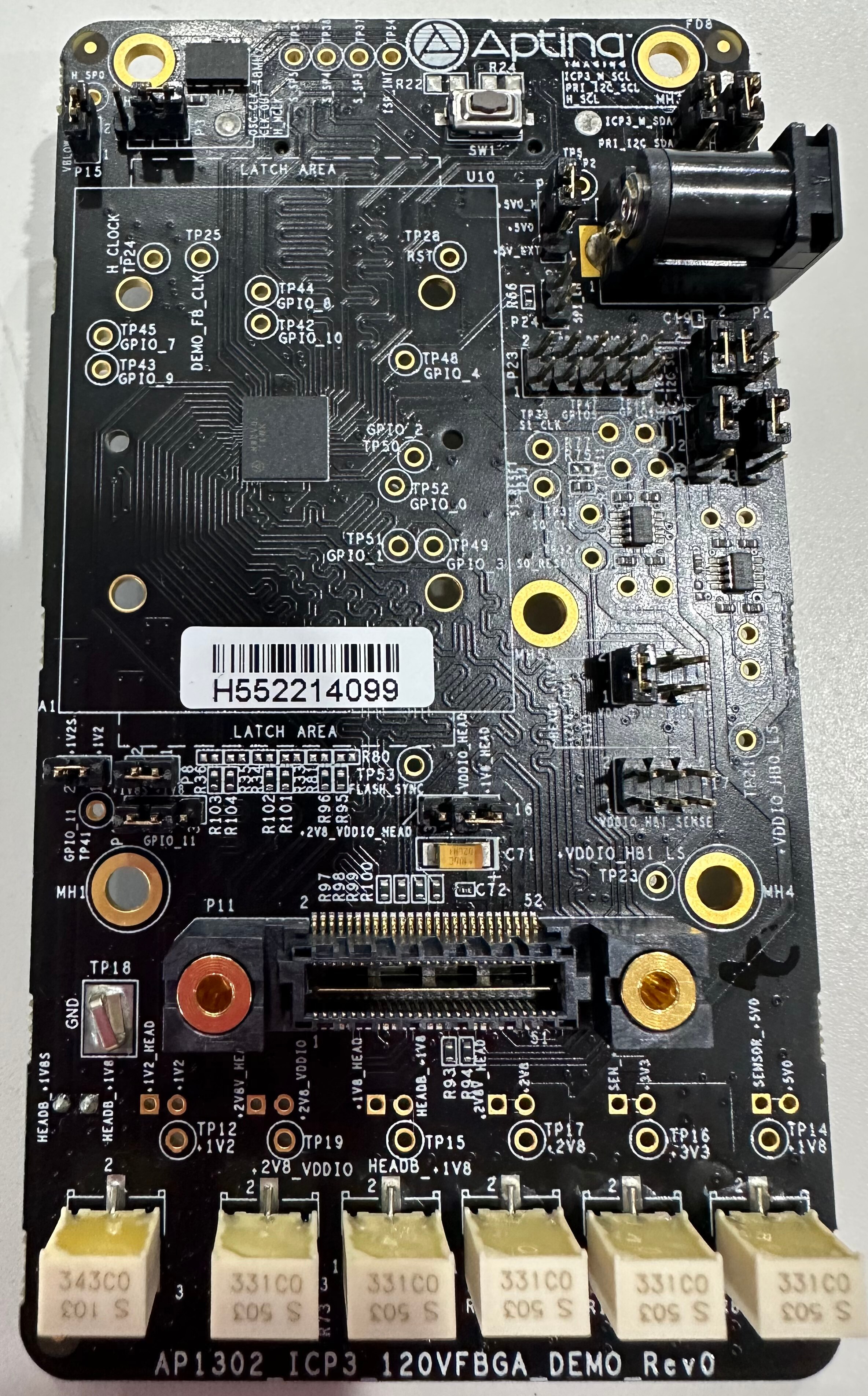

The AP1302CSSL00SMGAH3-GEVB (Co-Processor Board) is a highly optimized processing board that is used with onsemi image sensors evaluation boards. It uses the AP1302, a high-performance ultra-low power in-line, digital image and video stream processor supporting up to 13MP in resolution. The evaluation board sits in between the Sensor Headboard and the Demo 3 Evaluation Board (AGB1N0CS-GEVK) connecting the datapath with MIPI inputs & outputs. Together with industry leading DevSuite software from onsemi, it provides comprehensive capabilities to evaluate & process the sensor’s features & image data and generate the complete firmware package that can be used by the SoC.

The sensor board comes with a lens suitable for evaluation. Users can use their own lens if it is compatible with the mechanical & optical requirements.

Besides the Sensor Headboard (pls refer to sensor specific product pages), you will also need:

• Demo 3 Evaluation Board (AGB1N0CS-GEVK)
• DevSuite Software
