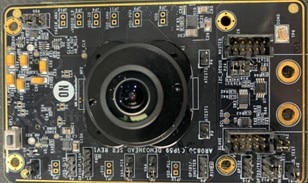

Evaluation Board | AR2020CSSM13SMTAH3-GEVB

The AR2020CSSM13SMTAH3-GEVB (Sensor Board) uses an advanced Backside Illuminated (BSI) pixel from onsemi. It delivers enhanced optical performance both in visible & NIR spectrums and the sensor consumes very low power delivering superior image quality. The Sensor Board can be interfaced to the Demo3 Evaluation Board, or with the AP1302 Evaluation Board stacked on Demo3 Evaluation Board (supported to a max image resolution of 13MP). The combined kit uses the popular DevSuite software from ON Semiconductor to configure the system. The software provides a comprehensive setup interface and flexibility to evaluate the sensor’s features and capabilities.

The sensor board comes with a lens suitable for evaluation. Users can use their own lens if it is compatible with the mechanical & optical requirements.

To get started with the AR2020CSSM13SMTAH3-GEVB, you will also need:

• Demo 3 Evaluation Board (AGB1N0CS-GEVK)
• AP1302 Evaluation Board (optional)
• DevSuite Software
