Evaluation Board | DLT100AGEVB

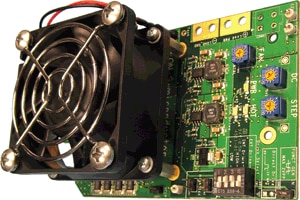

Dynamic Load Tool 100 A Evaluation Board
概览
The dynamic load tool or active load tool is designed for testing power supplies and other forms/sources of electrical power. It provides accurate output references to confirm that the output voltage and current are within their required range of predetermined load ranges and conditions, from no load to maximum load.
特性
- Dynamic Load Tool for fast transient loads up to 100A
- DC load bias up to 40A + 100A transient loads
- Load frequency adjustable via external function generator 1Hz to ~ 1Mhz (slew rate dependent)
- Output load voltages from 0.5V to 12V
- High and Low load drives for current sensing accuracy: High load = 5mV/Amp, Low load = 25mV/Amp
- Slew rate controllable for applications from 1A to 100A
