Evaluation Board | EVBUM2878G-EVB
Evaluation Board for 1200V M3S 4-PACK EliteSiC MOSFET Module
概览

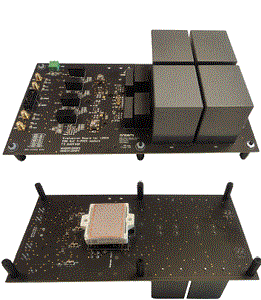

Evaluation board is designed for evaluations onsemi 1200 V M3S
(Full bridge) 4- PACK modules in F2 package. Purpose of the evaluation board is double pulse switching test and open loop power test of onsemi full-bridge modules.
Evaluation board supports onsemi modules:
• NXH011F120M3F2PTHG
• NXH007F120M3F2PTHG
The evaluation board can be connected to an external controller
providing PWM inputs and handling fault signals
应用
- DC-AC conversion
- DC-DC conversion
- AC-DC conversion
终端产品
- UPS
- Energy Storage Systems
- Electric Vehicle Charging Stations
- Solar Inverters
特性
- 4 Layer FR4 PCB with 70 m Copper Thickness
- High Thermal Emissivity − Black PCB Color
- 4 Isolated Single Gate Drivers with 2.5 kV Insulation
- Connector Base for Input and Output Signals
- Low Inductance PCB Layout
Evaluation/Development Tools
