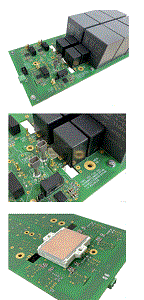

Evaluation Board | EVBUM2883G-EVB

Evaluation board is designed for evaluations onsemi 1200 V M3S –3 level TNPC – Neutral point clamped, T−type modules in F2 package. Purpose of the evaluation board is double pulse switching test and open loop power test of onsemi TNPC modules.

Evaluation board supports onsemi modules:

• NXH008T120M3F2PTHG
• NXH011T120M3F2PTHG

The evaluation board can be connected to an external controller

providing PWM inputs and handling fault signals
