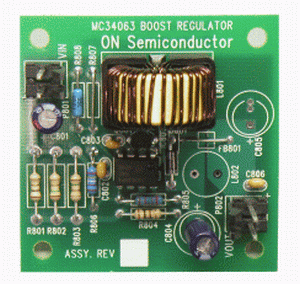

Evaluation Board | MC34063LBGEVB
Boost Regulator Evaluation Board
概览
The MC34063 is a switching control circuit for use in DC to DC converters. With an on board switch capable of delivering 1.5 A, this versatile controller can be utilized in step up, step down, buck-boost, or voltage inverting topologies with a minimum number of components.
特性
- Wide Input Range from 3.0 V to 40 V
- Operating Frequency to 100 kHz
- Current Limiting
- 2% Reference
- Adjustable Output Voltage
- Switch Current to 1.5 A
- No Error Amplifier Compensation is Required
