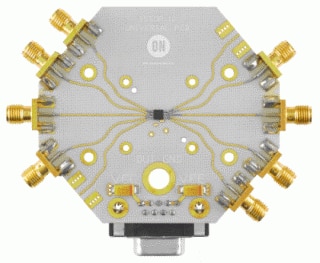

Evaluation Board | NB4N855SMEVB
Translator Evaluation Board
概览
The NB4N855SMEVB has been developed as a convenience for the customers interested in performing their own device engineering assessment. This evaluation board provides a high bandwidth 50 ohm controlled impedance environment. The NB4N855SMEVB Manual contains appropriate lab setup, assembly instructions and bill of materials.
特性
- Guaranteed Input Clock Frequency up to 1.0 GHz
- Guaranteed Input Data Rate up to 1.5 Gb/s
- 490 ps Maximum Propagation Delay
- 1.0 ps Maximum RMS Jitter
- 180 ps Maximum Rise/Fall Times
- Single Power Supply; VCC = 3.3 V 10%
- Temperature Compensated TIA/EIA-644 Compliant LVDS Outputs
- GND + 50 mV to VCC - 50 mV VCMR Range
Evaluation/Development Tools
产品
参考价格
Show More
1-25 of 25
Products per page
Jump to :
1
技术文档
名称 / 描述
文档类型
修改日期
EVBUM2079/D
2
Eval Board: Manual
378.88 KB
EN
Eval Board: Manual
November 01, 2019
More Details
NB4N855SMEVB_GERBER
0
Eval Board: Gerber
81.92 KB
EN
Eval Board: Gerber
March 13, 2025
More Details
