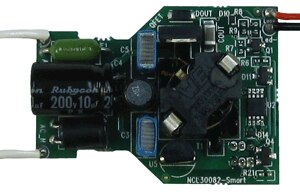

Evaluation Board | NCL30082SMRTGEVB
8 W SEPIC LED Driver Evaluation Board
概览
The NCL30082SMRTGEVB is designed to effectively evaluate the NCL30082, which is a PWM current mode controller targeting isolated flyback and non-isolated buck-boost constant current topologies. The controller operates in a quasi-resonant mode to provide high efficiency. Thanks to a novel control method, the device is able to precisely regulate a constant LED current from the primary side. This removes the need for secondary side feedback circuitry, biasing and an optocoupler. The device is highly integrated with a minimum number of external components. A robust suite of safety protection is built in to simplify the design. The device supports analog/digital dimming and thermal foldback.
