Evaluation Board | NCN5140BSCGEVB

NCN5140S KNX System-in-Package 8 Button Switch Certified Eval Board

产品
跳转至
概览 Evaluation/Development Tools 技术文档

概览

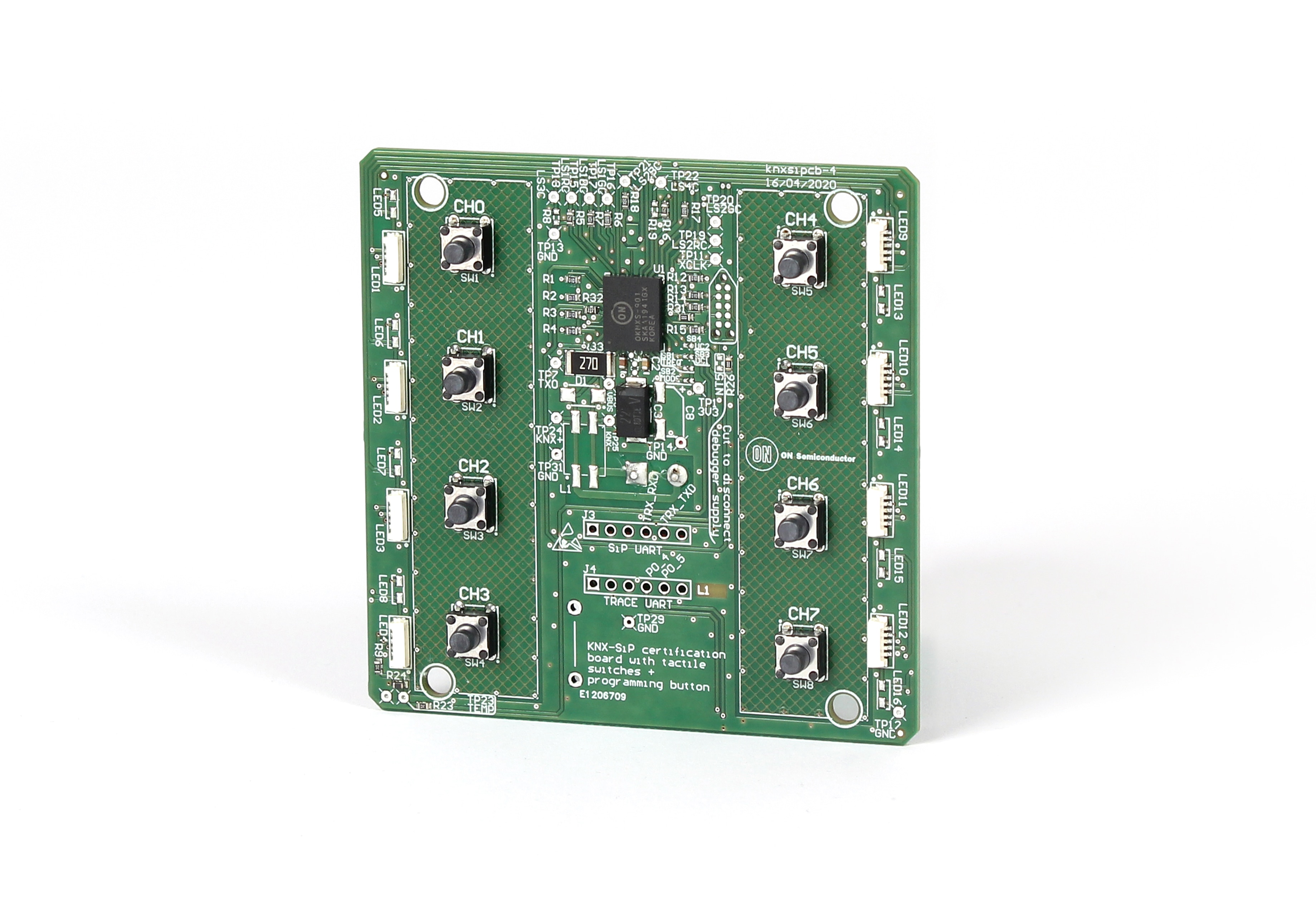

The NCN5140BSCGEVB is a KNX-certified rocker button evaluation board. Built around the NCN5140S KNX System-in-Package, it provides an easy entry point into the KNX network.The maximum pre-certified configuration consists of 8 buttons and 8 RGB LEDs. Simple registration of a derived product is sufficient to obtain KNX certification of a customized KNX touch switch.

  • Up to 8 rocker button KNX wall switches
  • RGB LEDs illuminating the touch buttons
  • Building Automation & Smart Home
  • Smart Lighting Switches
  • Shutters and Blinds Control
  • Ventilation Control
  • Fully-certified KNX switch application: - Certified Physical Layer - Certified KNX Stack
  • Pre-certified Hardware & Software:Up to 8 rocker buttons with RGB LEDs
  • Very high degree of integration
  • Low BOM cost, cost reduction
  • Fast time to market, reduced R&D effort
  • Improved slim-line aesthetics
