Evaluation Board | NCP1096GEVB
PoE-PD Interface Controller Evaluation Board, IEEE 802.3bt
概览

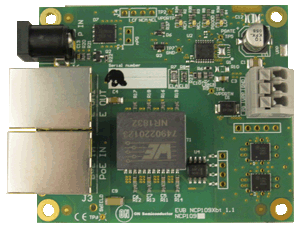

The NCP1096 is a member of ON Semiconductor's Power over Ethernet-Powered Device (PoE-PD) product family and integrates an IEEE 802.3bt compliant PoE-PD interface controller. It incorporates the required functions of a PoE system such as detection, classification, and current limiting and also supports high-power applications (up to 100W) through an integrated transistor and sense resistor. The NCP1096GEVB enables the evaluation of the NCP1096 controller and includes RJ-45 connectors, power transformer, active bridge (Greend Bridge2) and other fixtures to help the end user with testing.
Evaluation/Development Tools
产品
参考价格
Show More
