Evaluation Board | NCP1342PD65WGEVB
NCP1342 60W USB PD评估板
概览

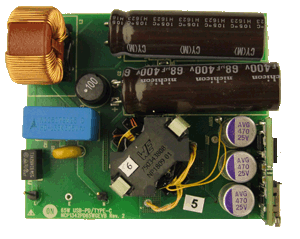

NCP1342PD65WGEVB 展示了用于 USB 供电（PD）应用的 NCP1342准谐振反激式控制器。这个评估板采用一个紧凑的RM8变压器，提供60W的电力。NCP1342适用于设计高性能离线式电源转换器和 USB PD 适配器，并具有快速频率折返（RFF） ，以提高在负载范围内的效率。一个集成的有源X2电容器放电功能消除了放电电阻，使空载功耗低于40 mW。
