Evaluation Board | NCP3064SCBCKGEVB

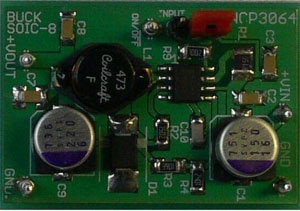

SOIC8 Buck Demonstration Evaluation Board
概览
The NCP3064 device supports a buck configuration with a wide input voltage range from 3.0V to 40.0V. The NCP3064 is a low cost converter that supports a peek current of 1.5A with a maximum duty cycle of 85.7 percent. The ON/OFF function allows turn the device to low consumption mode.
Size: 41mm x 28mm x 14mm
特性
- Input Voltage Range from 3.0 V to 40 V
- Logic Level Shutdown Capability
- Low Power Standby Mode, Typical 100 uA
- Output Switch Current to 1.5 A
- Adjustable Output Voltage Range
- 150 kHz Frequency Operation
- Precision 2% Reference
- Internal Thermal Shutdown Protection
- CyclebyCycle Current Limiting
- NCV Prefix for Automotive and Other Applications Requiring Site
and Control Changes - These are PbFree Devices
