Evaluation Board | NCP3066SCBCKGEVB

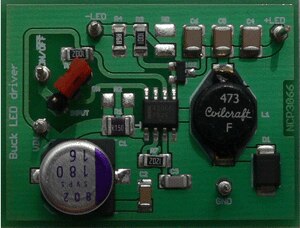

SOIC8 Buck Demonstration Evaluation Board
概览
The NCP3066 is a monolithic switching regulator designed to deliver constant current for powering high brightness LEDs. The device has a low feedback voltage of 235 mV which is used to regulate the average current of the LED string.The device supports a buck configuration with a wide input voltage range from 3.0V to 40.0V. The NCP3066 is a low cost converter that supports a peak current of 1.5A with a maximum duty cycle of 85.7%. The ON/OFF function allows turn the device to low consumption mode, or drive the LED brightness using PWM signal.
Size: 42mm x 32mm x 13mm
特性
- Integrated 1.5 A Switch
- Input Voltage Range from 3.0 V to 40 V
- Logic Level Shutdown Capability
- Low Feedback Voltage of 235 mV
- Cycle by Cycle Current Limit
- No Control Loop Compensation Required
- Frequency of Operation Adjustable up to 250 kHz
- Operation With All Ceramic Output Capacitors or No Output Capacitance
- Analog and Digital PWM Dimming Capability
- Internal Thermal Shutdown with Hysteresis
- NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
- These are Pb Free Devices
