Evaluation Board | NCP3230GEVB

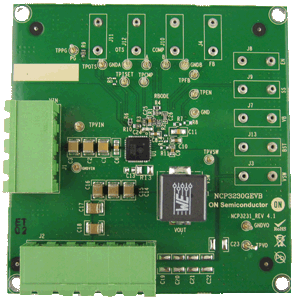

The NCP3230GEVB Evaluation Board is a high current, high efficiency, voltage−feed−forward voltage−mode synchronous buck converter which operates from 4.5 V to 18 V input and generates output voltages down to 0.6 V at up to 30 A load.

Features

• Wide Input Voltage Range from 4.5 V to 18 V
• 0.6 V Internal Reference Voltage
• 500 kHz Switching Frequency
• External Programmable Soft−start
• Lossless Low−side FET Current Sensing
• Output Over−voltage Protection and Under−voltage Protection
• System Over−temperature Protection using a Thermistor or Sensor
• Hiccup Mode Operation for All Faults
• Pre−bias Start−up
• Adjustable Output Voltage
• Power Good Output
• Internal Over−temperature Protection
