Evaluation Board | NCP45491PMNGEVB

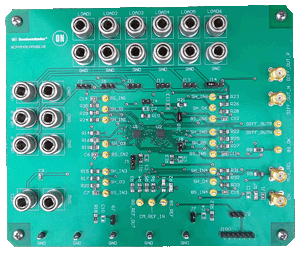

The NCP45491PMNGEVB is an evaluation board demonstrating the NCP45491 in paired mode (or dual mode) operation. Two NCP45491 parts are configured with 6 channels with test points available for observing all power monitoring signals in operation. While the evaluation board demonstrates 6 channels, up to 8 channels are possible in paired mode. The evaluation board also provides a means of quick prototyping for specific applications.
