Evaluation Board | NCP45520IMNGEVB

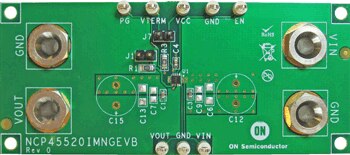

Controlled Load Switch with Ultra-Low Ron Evaluation board

产品
跳转至
概览 Evaluation/Development Tools

概览


The NCP45520 load switch provides a component and area-reducing solution for efficient power domain switching with inrush current limit via soft-start. In addition to integrated control functionality with ultra low on-resistance, this device offers system safeguards and monitoring via fault protection and power good signaling. This cost effective solution is ideal for power management and hot-swap applications requiring low power consumption in a small footprint.

  • Advanced Controller with Charge Pump
  • Integrated N-Channel MOSFET
  • Soft-Start via Slew Rate Control
  • Input Voltage Range 0.5 V to 13.5 V (18V Tolerant)
  • Low Standby Current
  • Quick Output Discharge Function (Adjustable)
  • Power Good Signaling
  • Fault Protection: Over Temperature
  • Fault Protection: Under Voltage Lockout
  • Fault Protection: Short-Circuit Protection

Evaluation/Development Tools

产品

类型

Ref. Design

状态

Part Used

Reference Price

NCP45520IMNGEVB

Controlled Load Switch with Ultra-Low Ron Evaluation board

评估板

No

Active

NCP45520IMNTWG-H,

NCP45520IMNTWG-L

$222.222200

More Details
