Evaluation Board | NCP508SQ15T1GEVB

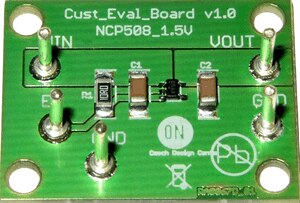

1.5 V WDFN Evaluation Board
概览
The NCP508 is a 50 mA low noise voltage regulator, designed to exhibit fast turn on time and high ripple rejection. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits.
特性
- Very Low Noise at 39 Vrms without a Bypass Capacitor
- High Ripple Rejection of 70 dB at 1 kHz
- High Ripple Rejection of 70 dB at 1 kHz
