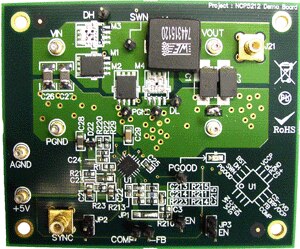

Evaluation Board | NCP5212AGEVB
Synchronous Step-Down Controller Evaluation Board
概览
The NCP5212A/NCP5212T is a synchronous step-down controller for high performance systems battery-power systems. The NCP5212A/NCP5212T includes a high efficiency PWM controller. A pin is provided to allow two devices in interleaved operation. An internal power good voltage monitor tracks the SMPS output. NCP5212A/NCP5212T also features soft-start sequence, UVLO for Vcc and switcher, over-voltage protection, over-current protection, under-voltage protection and thermal shutdown. The IC is packaged in QFN16.
应用
- Notebook Computers
- Tablet Computers
- System Power
特性
- 0.8% accuracy 0.8 V Reference
- 4.5 V to 27 V Battery/Adapter Voltage Range
- Adjustable Output Voltage Range: 0.8 V to 3.3 V
- Synchronization Interleaving between Two NCP5212A/NCP5212Ts
- Skip Mode for Power Saving Operation at Light Load
- Lossless Inductor Current Sensing
- Programmable Transient-Response-Enhancement (TRE) Control
- Programmable Adaptive Voltage Positioning (AVP)
- Input Supply Feedforward Control
- Internal Soft-Start
- Integrated Output Discharge (Soft-Stop)
- Build-in Adaptive Gate Drivers
- PGOOD Indication
- Over-voltage, Under-voltage and Over-current Protections
- Thermal Shutdown
- These Devices are Pb-Free and are RoHS Compliant
