Evaluation Board | NCP571MN12TBGEVB
LDO Regulator Evaluation Board
概览

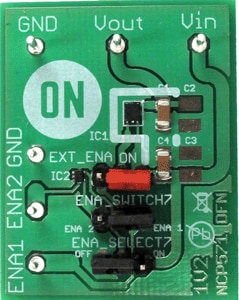

This demoboard supports the LDO regulator NCP571 in DFN6 package with fix output voltage 1.2 V. This part is ideal for hand-held communication equipment and portable battery powered applications which require low quiescent current. The ENABLE function allows the device to enter low consumption mode with quiescent current below 1 uA. The device also incorporates both current limit and over temperature protection circuits.
应用
- Battery Powered Instruments
- Hand-Held Instruments
- Camcorders and Cameras
