Evaluation Kit | NCP81418GEVK

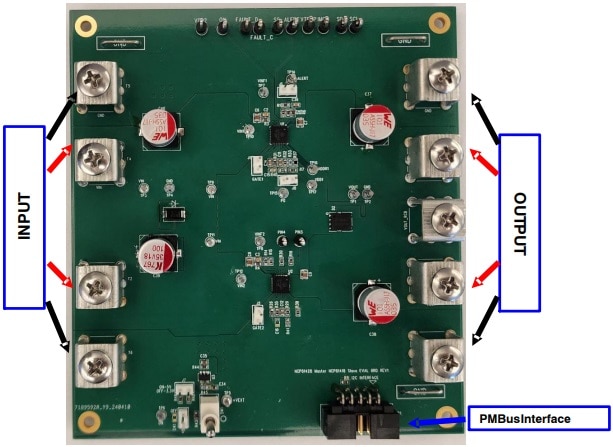

NCP81428 and NCP81418 Evaluation Board
概览
应用
- Server and High-performance computing
- Data Storage
- Base Station
- Industrial Applications
特性
- Programmable Auto Retry/Latch Off Options
- Fault Event and Peak Current Recording
- Excessive Soft-start Duration Protection
- Internal FET Health Diagnostics
- FAULT#_C& FAULT#_D Multi-purpose Pins
- Over-temperature Shutdown
- Excellent Current Balancing in Parallel Operations
- Parallel Operation for High Current Applications
- 10-bit ADC for IOUT, VIN, IOUT_PK, VOUT, VTEMP
- 3 OCPs with Programmable Levels and Timers
- PMBus 1.4 Compliant for Telemetry
- Programmable VIN Under Voltage Warning and Over Voltage Fault
- External Soft-Start Programming
- Output Pulldown Selection Via PMBus
- Enabled by Pin Assertion and/or Through PMBus
- Up to 30V Standby (PowerFet Off) Operation
- VIN Operating Range: 4.5 to 18V
- Up to 160A Peak Output Current, 100A Continuous
- 0.65mOhm Smart Fuse Rds on
- Soft Start Current Balancing Between Parallel Units
- Co-packaged Power Switch, Hotswap Controller and NVM
- (TWI) Two Wire Interface between Master and Slave(s)
Evaluation/Development Tools
产品
参考价格
Show More
1-25 of 25
Products per page
Jump to :
1
技术文档
名称 / 描述
文档类型
修改日期
NCP81418GEVK GUI
2
Software
374.3 MB
EN
Software
April 01, 2025
More Details
EVBUM2928/D
2
Eval Board: Manual
789.5 KB
EN
Eval Board: Manual
January 01, 2026
More Details
NCP81418GEVK_TEENSY_GERBER
0
Eval Board: Gerber
54.27 KB
EN
Eval Board: Gerber
April 15, 2025
More Details
NCP81418GEVK_TEST_PROCEDURE
0
Eval Board: Test Procedure
167.94 KB
EN
Eval Board: Test Procedure
June 06, 2025
More Details
NCP81418GEVK_BOM_ROHS
1
Eval Board: BOM
15.36 KB
EN
Eval Board: BOM
April 15, 2025
More Details
NCP81418GEVK_GERBER
0
Eval Board: Gerber
1.31 MB
EN
Eval Board: Gerber
April 10, 2025
More Details
NCP81418GEVK_SCHEMATIC
1
Eval Board: Schematic
797.7 KB
EN
Eval Board: Schematic
June 06, 2025
More Details
