Evaluation Kit | NCS32100-GEVK

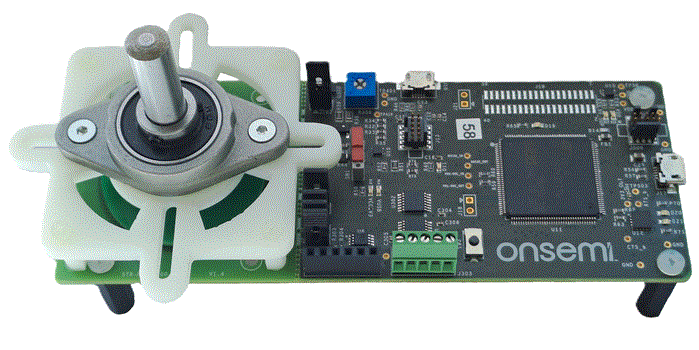

The NCS32100-GEVK evaluation board provides hardware and a PCB rotary sensor for full demonstration of the NCS32100. The NCS32100 is connected to a fully functional PCB rotary sensor capable of sensing positions with an accuracy of <50 arcsec (0.014 degrees) . The board can be connected to a computer running the onsemi NCS32100-GEVK Evaluation Application, which provides a user interface for accessing position and velocity data, as well as several other auxiliary features. The NCS32100 evaluation board houses a full rotary sensor application with a master controller for accessing position and velocity data. Data is displayed through the onsemi NCS32100-GEVK Evaluation Application (available for download from onsemi.com). The evaluation board is programmed, calibrated, and ready for demonstration.
