Evaluation Kit | NCV7192EVK

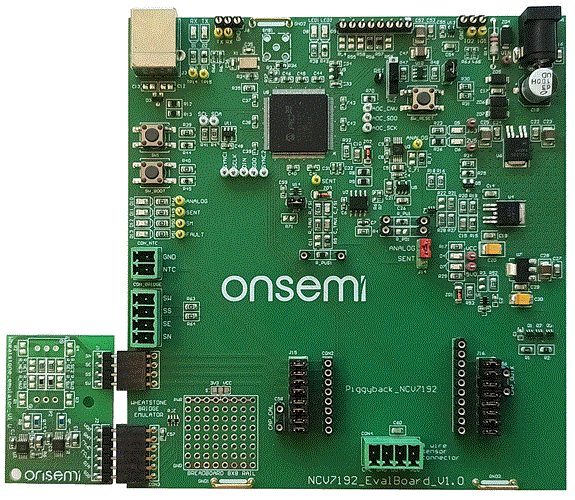

The Evaluation Kit can be used for an initial evaluation to get familiar with the NCV7192 Bridge Signal Conditioning Interface. It is operated through a Windows-based GUI (Graphical User Interface) and is connected via a USB cable to the microcontroller on the evaluation kit. The microcontroller handles the translation from USB to the NCV7192 device.

In Operating mode, it is possible to set the chip to ANALOG or SENT output. If the output is set to ANALOG, the output voltage of the chip is measured by an on-board ADC and sent to the GUI. If the output is set to SENT, it is possible to read the signals from the output pin through this protocol.

Part of the evaluation kit is a Wheatstone bridge emulator. It is a resistive bridge used for emulating a range of transducers.
