Evaluation Board | NCV78343R1GEVB

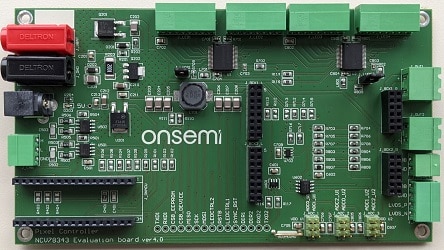

The NCV78343 mother board features two NCV78343 pixel controller devices. Board can be used to individually control up to 24 pixels. UART as a communication protocol is available on both CAN PHY and M-LVDS layers, which allows to simulate different system architectures directly on the board. There is an optional slot for NCV78763R1DAGEVB boost-buck converter to supply current for LED string. ONMCU3V3R1GEVB MCU control board can be inserted into dedicated socket as interface between PC and evaluated devices.

Board features CAN and M-LVDS connectors to allow chaining of multiple devices, NCV78343R1GEVB mother boards or NCV78343R1DAGEVB satellite boards.
