Evaluation Board | NCV8537MN180GEVB
1.8 V LDO Regulator Evaluation Board
概览

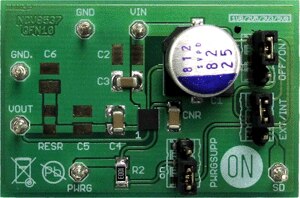

The demoboard supports the LDO regulator NCV8537 in DFN10 package with fix output voltage 1.8 V. The ENABLE function allows turn the device to low consumption mode with quiescent current below 1 µA. The Power Good pin alows output voltage monitoring. The additional CNR capacitor reduces the output noise.
Size: 45mm x 30mm x 18mm
应用
- Networking Systems, DSL/Cable Modems
- Audio Systems for Automotive Applications
- Navigation Systems
- Cable Set-Top Box
- Satellite Receivers
- Displays and Monitors
特性
- High Accuracy Over Line and Load (±0.9% at 25°C)
- Operating Temperature Range: -40°C to 125°C.)
- Stable Output with Low Value Capacitors of any type and with no Minimum Load Current Requirement Incorporates Current Limiting and Reverse Bias Protection
- Low Noise (33 _Vrms w/10 nF Cnr and 52 _Vrms w/out Cnr)
- Low Shutdown Current (< 1 mA)
- 2.9 V to 12 V Supply Range
- Thermal Shutdown Protection
- Current Limitation
- Power Good Output to Indicate the Regulator is Within Specified Limits
