Evaluation Board | NIS5132-35GEVB

The NIS5132 and NIS5135 electronic fuses are monolithic, integrated circuits that offer superior protection for overcurrent and overvoltage. The NIS5132 is designed for 12 volt systems while the NIS5135 is designed for 5 volt systems. These two chips can be easily interfaced for systems that include both a 5 and a 12 volt bus. By tying the enable pins together both units will shutdown if either unit encounters a fault condition.

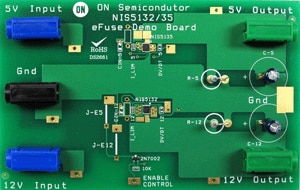

This evaluation board can be used to examine the behavior of either unit individually or both units together. A set of jumpers is provided to allow the enable pins to be connected or disconnected from each other.
