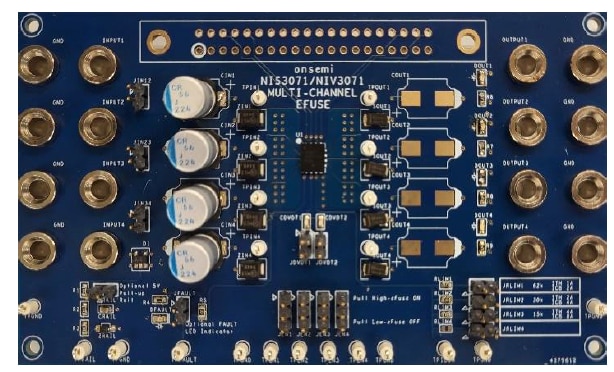

Evaluation Board | NIV3071MTW3GEVB

The NIV(S)3071MTW3GEVB Evaluation Board allows testing and evaluation of the NIV(S)3071MTW3, a 4-channel, 8 V to 60 V, 2.5 A (per channel), latch version eFuse. The user applies a DC voltage to the respective inputs and may connect load(s) of up to 2.5 A (per channel) to the respective outputs. The boards have test points for all pins, an output voltage slew rate adjustment capacitor selectable with a jumper, indicator LEDs for the output voltages and enable/fault status, and a potentiometer to set the current limit.
