Evaluation Board | SEC-6D6KW-OBC-TTP-GEVB

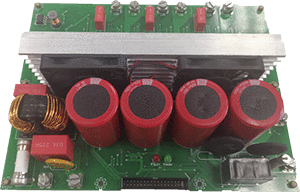

A 6.6kW OBC evaluation board using Totem pole topology
概览
This 6.6kW OBC evaluation board provides a reference design on the power stage of totem pole interleave PFC topology which consists of 650V N-Channel Power MOSFET SUPERFET® III (NVHL025N65S3), monolithic high- and low-side gate-driver IC (FAN7191_F085) in low-speed leg, high switching performance SiC MOSFET (NVHL060N090SC1), Isolated High Current and High Efficiency IGBT driver (NCV57000DWR2G) in high-speed leg. With these high performance devices and totem pole topology, the system efficiency reaches 97% (typical value), and hardware protection of OCP and OVP is also provided for high system reliability. Onboard auxiliary power system is designed to supply every circuits on the board and the control board without outside DC source. Meanwhile, flexible control interfaces are available to adapt different controller boards.Visit the On Board Charging solutions site to learn how onsemi can help you a comprehensive and advanced portfolio.
应用
- On Board Charger (OBC)
- EV Charging
- 3-Ph AC/DC conversion
特性
- 3ch Interleave Totem Pole PFC
- Efficiency up to 97% @Vin=220V/AC, Full Load
- Onboard hardware protection of OCP and OVP
- Flexible control interface for different controller boards
- Input voltage – 90~260Vac
- Output voltage – 1.414xVin+10V – 405Vdc
Evaluation/Development Tools
产品
参考价格
Show More
1-25 of 25
Products per page
Jump to :
1
技术文档
名称 / 描述
文档类型
修改日期
SEC-6D6KW-OBC-TTP-GEVB_GERBER
0
Eval Board: Gerber
5.93 MB
EN
Eval Board: Gerber
December 01, 2020
More Details
SEC-6D6KW-OBC-TTP-GEVB_BOM_ROHS
0
Eval Board: BOM
404.48 KB
EN
Eval Board: BOM
December 01, 2020
More Details
EVBUM2784/D
0
Eval Board: Manual
2.18 MB
EN
Eval Board: Manual
December 01, 2020
More Details
SEC-6D6KW-OBC-TTP-GEVB_SCHEMATIC
0
Eval Board: Schematic
378.88 KB
EN
Eval Board: Schematic
December 01, 2020
More Details
