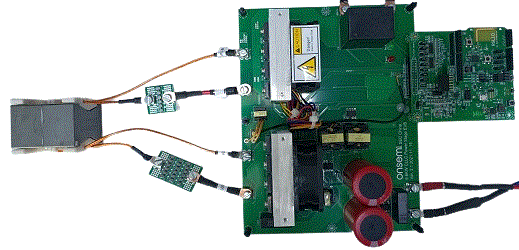

Evaluation Kit | SEC-6K6W-CLLC-GEVK

The SEC-6K6W-CLLC-GEVK is a CLLC bidirectional DC-DC reference design for On Board Charging (OBC).
The reference design is made with multiple boards separating control from the power section.
This system uses the NVHL040N120SC1 & NVHL020N090SC1 automotive qualified SiC MOSFETs. SiC provides benefits that enable higher power density, higher switching frequency, and an extremely efficient design as compared to silicon solutions.
NCV57000 ICs provide galvanically isolated gate drive capability, separate drive outputs and fault detection with reinforced safety insulation.
The NCV4390 is used to control the CLLC topology, allowing bidirectional support via a MCU control pin to swap between grid to battery or battery to grid while maintaining proper output voltage and current.

Filling out the design, onsemi provides devices for the power rails (NCV890100, NCV4274, NCV8715), analog signal chain (NCV210, NCV2901, NCV2003, NCV33204), and several small signal devices such as BJTs, diodes and ESD protection.
