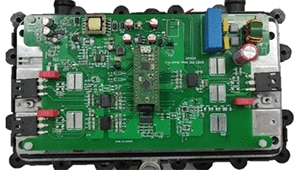

Evaluation Board | SEC-PTC400-EVB
HVAC PTC IGBT Driver
概览
The PTC IGBT Driver is a complete system solution for PTC HEV/EV vehicles applications, incorporating the power train, gate drivers and auxiliary subsystems to facilitate the adoption in custom designs. The system achieves high performance and compactness by combining together the incredibly low-conduction loss Field Stop IGBT technology ( FGH40T65) with high-performance isolated gate drivers ( NCV57000). Auxiliary isolated power supply is provided via a flyback configuration based on the NCV8871 non-synchronous controller. Visit the EV Auxiliary power solutions site to learn how ON Semiconductor can help with our comprehensive and advanced portfolio.´
应用
- HEV/EV Automotive PTC systems
- Automotive HVAC
特性
- Input voltage – 200 ~ 400 Vdc
- Output – ~ 380 Vdc, ~ 1.8 kW
- Imax 40 A rms
- GPIO/PWM control interface (the MCU board is not included in the system)
- Galvanic isolated IGBT gate driver NCV57000
- High-current IGBT Field Stop IGBT FGH40T65
- Isolated power supply for IGBTs gate drivers
- Current and voltage sensing circuitry
- High side and low side gate driver solution
- Low voltage DC-DC conversion solutions
Evaluation/Development Tools
产品
参考价格
Show More
1-25 of 25
Products per page
Jump to :
1
技术文档
名称 / 描述
文档类型
修改日期
SEC-PTC400-EVB_BOM_ROHS
0
Eval Board: BOM
302.08 KB
EN
Eval Board: BOM
October 01, 2019
More Details
TND6319/D
1
Reference Designs
1.46 MB
EN
Reference Designs
October 01, 2019
More Details
SEC-PTC400-EVB_SCHEMATIC
0
Eval Board: Schematic
108.54 KB
EN
Eval Board: Schematic
October 01, 2019
More Details
TND6344/D
2
Reference Designs
832.51 KB
EN
Reference Designs
August 01, 2021
More Details
