Evaluation Board | STK5MFU3C1AGEVB
2-in-1 PFC and Inverter Intelligent Power Module Evaluation Board
概览

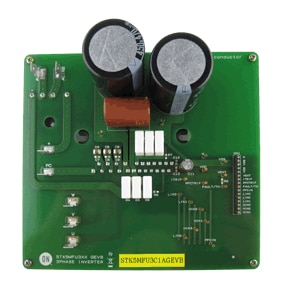

The STK5MFU3C1AGEVB is a fully-integrated PFC and inverter power stage Evaluation Board consisting of a high-voltage driver, six motor drive IGBTs, one PFC IGBT, one PFC rectifier and a thermistor, suitable for driving permanent magnet synchronous (PMSM) motors, brushless-DC (BLDC) motors and AC asynchronous motors.
