Evaluation Board | EVBUM2878G-EVB

Evaluation Board for 1200V M3S 4-PACK EliteSiC MOSFET Module

产品
跳转至
概览 Evaluation/Development Tools

概览

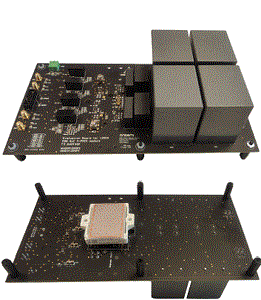

Evaluation board is designed for evaluations onsemi 1200 V M3S

(Full bridge) 4- PACK modules in F2 package. Purpose of the evaluation board is double pulse switching test and open loop power test of onsemi full-bridge modules.

Evaluation board supports onsemi modules:

• NXH011F120M3F2PTHG

• NXH007F120M3F2PTHG

The evaluation board can be connected to an external controller

providing PWM inputs and handling fault signals

  • DC-AC conversion
  • DC-DC conversion
  • AC-DC conversion
  • UPS
  • Energy Storage Systems
  • Electric Vehicle Charging Stations
  • Solar Inverters
  • 4 Layer FR4 PCB with 70 m Copper Thickness
  • High Thermal Emissivity − Black PCB Color
  • 4 Isolated Single Gate Drivers with 2.5 kV Insulation
  • Connector Base for Input and Output Signals
  • Low Inductance PCB Layout

Evaluation/Development Tools

产品

类型

Ref. Design

状态

Part Used

Reference Price

EVBUM2878G-EVB

Evaluation Board for 1200V M3S 4-PACK EliteSiC MOSFET Module

评估板

No

Active

NXH007F120M3F2PTHG,

NXH011F120M3F2PTHG

$733.315000
