Evaluation Board | FUSB251GEVB

Type-C™ CC and SBU Protection IC Evaluation Board

产品
跳转至
概览 Evaluation/Development Tools

概览

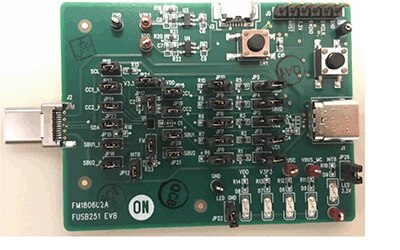

The FUSB251 evaluation board is designed to be inserted between a board that contains a Type-C controller (such as FUSB302B or FUSB307B) and a source of voltage for OVP testing. Test points and header switches are ready to test OVP and moisture detection functions on CC and SBU. LED indicators will show power status and Interrupt. If there isn't access to a Type-C voltage source, test points (GND and VDD) are available on the board for direct power supply connections.The Type-C receptacle can accept a Type-C device such as Type-C charger or memory stick to demonstrate normal USB functionality.

  • This product is general usage and suitable for many different applications.
  • This product is general usage and suitable for many different applications.
  • Dead battery mode provides default Rd presenting on CC1/2
  • 24volt DC tolerant on CC and SBU
  • +/- 35volt Surge protection on CC and SBU
  • Over voltage protection on CC and SBU
  • I2C interface with Interrupt for event notification.
  • Moisture detection on CC and SBU pins.
  • On-chip IEC ESD protection with external capacitor on CAP pin
  • CC Ron 0.3ohm Typical
  • SBU Ron 3ohm Typical
  • 50Mhz Bandwidth on SBU switch
  • 15 ball WLCSP

Evaluation/Development Tools

产品

类型

Ref. Design

状态

Part Used

Reference Price

FUSB251GEVB

Type-C™ CC and SBU Protection IC Evaluation Board

评估板

No

Active

FUSB251UCX

$111.111100

More Details
