NCV8716 WDFN EVALUATION BOARD
概览

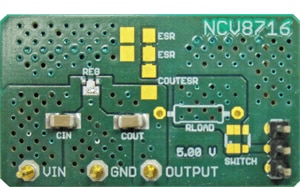

The demoboard supports the LDO regulator NCV8716 in wDFN6 2x2x0.8 mm package with fix output voltages:1.5 V, 1.8 V, 2.5 V, 3.0 V, 3.3 V and 5.0V. The ultra low quiescent current below 4.7 uA alows operation without Enable pin for low consumption state. For more information please see the datasheet.
应用
- Portable Equipment
- Communication Systems
- Other Battery Powered Applications
特性
- Operating Input Voltage Range: 2.5 V to 24 V
- Fixed Voltage Options Available: 1.5 V to 5.0 V
- Ultra Low Quiescent Current: Max. 4.7 uA Over Full Load andTemperature
- ±2% Accuracy over Full Load, Line and Temperature Variations
- PSRR: 60 dB at 100 kHz
- Thermal Shutdown Protection
- Current Limitation
- Noise: 20 μVRMS from 200 Hz to 100 kHz
- These are Pb−Free Devices
