Evaluation Board | a5191hrtngevb

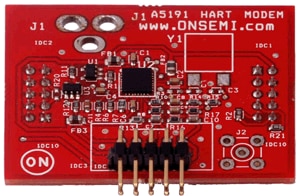

Hart Modem QFN Evaluation Board
概览
The A5191HRTNGEVB evaluation board includes all external components needed for operation of the A5191HRT and demonstrates the small PCB surface area such an implementation requires. The EVB allows easy design of HART implementations using A5191HRT.
