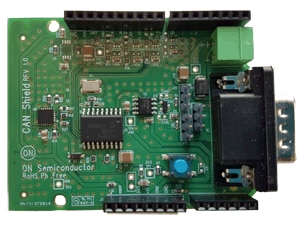

CAN-GEVB: CAN (Controller Area Network) Driver Shield Evaluation Board

The CAN Driver Shield Evaluation Board demonstrates the NCV7342 CAN transceiver, an interface between a controller area network (CAN) protocol controller and the physical bus that can be used in both 12 V and 24 V systems and is connected to the IoT through the PCA9655E's 16 bits of General Purpose parallel Input and Output (GPIO) expansion through the I2C-bus and SMBus.
产品 状况 Compliance 简短说明 所用产品 行动
CAN (Controller Area Network) Driver Shield Evaluation Board MBRS360BT3G NCV7342D13R2G
类型 文档标题 文档编号/大小 修订号
Eval Board: BOM CAN-GEVB Bill of Materials (ROHS Compliant) CAN-GEVB_BOM_ROHS - 66 KB  1
Eval Board: Gerber CAN-GEVB Gerber Layout Files (Zip Format) CAN-GEVB_GERBER - 1412 KB  1
Eval Board: Schematic CAN-GEVB Schematic CAN-GEVB_SCHEMATIC - 23 KB  1
