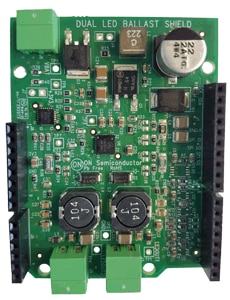

D-LED-B-GEVK: Dual LED Ballast Shield Evaluation Board

The Dual LED Ballast Shield Evaluation Board utilizes the NCV78763, a single chip, highly efficient smart power ballast and dual LED driver designed for high current LEDs that provides the complete solution to drive two strings up to 60 V, by means of two internal independent buck switch channel outputs with the PCA9655E to provide 16 bits of General Purpose parallel Input and Output (GPIO) expansion through the I2C-bus and SMBus. Due to the SPI programmability, one single hardware setup can support multiple system configurations for a flexible platform solution approach.

Power Supply needed:
Digi-Key
Mouser
评估/开发工具信息
产品 状况 Compliance 简短说明 所用产品 行动
D-LED-B-GEVK Active
Pb-free
Dual LED Ballast Shield Evaluation Board MBRA2H100T3G MBRD5H100T4G
MBRS3100T3G NCV78763MW0R2G
NTD6416ANT4G PCA9655EMTTXG
FutureElectronics (2020-08-19) : 16
技术文档
类型 文档标题 文档编号/大小 修订号
Eval Board: BOM D-LED-B-GEVK Bill of Materials (ROHS Compliant) D-LED-B-GEVK_BOM_ROHS - 39 KB  0
Eval Board: Gerber D-LED-B-GEVK Gerber Layout Files (Zip Format) D-LED-B-GEVK_GERBER - 525 KB  0
Eval Board: Schematic D-LED-B-GEVK Schematic D-LED-B-GEVK_SCHEMATIC - 30 KB  1
