Evaluation Kit | f143-mini-2-gevk

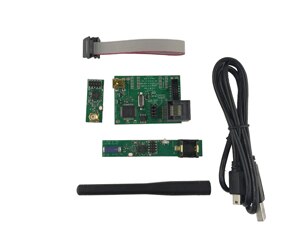

The F143-Mini-DVK is miniaturized development kit for the designer starting out with the AX8052F143, an ultra-low power, high performance SoC RF Microcontroller. The F143-Mini-DVK hardware consists of a USB debug adapter and a pair of RF modules (F143-Mini-A-MOD and F143-Mini-B-MOD modules) and includes all software necessary to quickly develop wireless applications. The modules have a tiny footprint of just 33 x 15 mm2. One module comes with a chip antenna the other is equipped with an SMA connector. The boards in this kit are optimized for operation at 868MHz, however they can be re-programmed for operation in the 915MHz band by using our RadioLab software. RF performance will be reduced but the boards are still useful for evaluation and software development.

The AX Debug Adapter can be found here: AXDBG-2-GEVK
