Evaluation Board | fusb301gevb

Autonomous USB Type-CTM Controller with Super Speed Switch Control

跳转至
概览 Evaluation/Development Tools 技术文档

概览

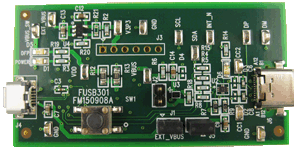

The FUSB301 System Board consists of is designed to demonstrate Fairchild?s Type-C and SuperSpeedUSB interface products. The board supports the following functions using Fairchild integrated solutions:
1. FUSB301 Autonomous Type-C Controller
2. FUSB340 SuperSpeed USB 2:1 Switch
3. FPF2411 VBUS Power Switch
4. FSA321 USB/Audio Switch

Evalution/Development Tools
