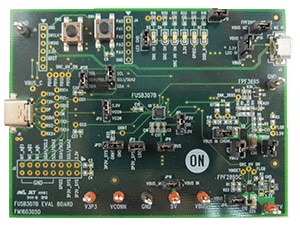

Evaluation Board | fusb307bgevb
Eval board for FUSB307B
概览
The FUSB307B targets system designers looking to implement upto four USB Type-C port controllers (TCPC) with USB-PDcapabilities.
This solution provides integrated Type-C Rev 1.3 detectioncircuitry enabling manual attach/detach detection. Time critical PowerDelivery functionality is handled autonomously, offloading theProcessor or Type-C Port Manager (TCPM).
The FUSB307B complies with the USB-PD InterfaceSpecification.
Feature
- USB-PD Interface Spec Rev 1.0 Ver. 1.2Compatible
- USB Type−C Rev 1.3 Compatible
- Extended Data Messages (Chunked)
- Fast Role Swap
- Sink Transmit
- USB−PD Rev 3.0 Ver. 1.1 Compatible
- Dual−Role Functionality
♦ Manual Type−C Detection
♦ Automatic DRP Toggling - USB−PD Interface Specification Support
♦ Automatic GoodCRC Packet Response
♦ Automatic Retries of Sending Packet
♦ All SOP* Types Supported - VBUS Source and Sink Control
- Integrated 3 W Capable VCONN to CCxSwitch
- 10-bit VBUS ADC
- Programmable GPIOs
- 4 Selectable I2C Addresses
- Dead Battery Operation
♦ Powered from VBUS
♦ LDO Output provides power to TCPM - Packaging
♦ 16-pin WQFN (3.0 × 3.0 mm)
Evalution/Development Tools
产品
行动
Show More
1-25 of 25
Products per page
Jump to :
1
技术文档
Name / Description
Document Type
Modified date
FUSB307BGEVB_TEST_PROCEDURE
0
Eval Board: Test Procedure
220.16 KB
EN
Eval Board: Test Procedure
May 22, 2018
More Details
FUSB307BGEVB_GERBERS
1
Eval Board: Gerber
525.31 KB
EN
Eval Board: Gerber
May 22, 2018
More Details
FUSB307BGEVB_SCHEMATIC
2
Eval Board: Schematic
285.7 KB
EN
Eval Board: Schematic
May 22, 2018
More Details
FUSB307BGEVB_BOM_ROHS
2
Eval Board: BOM
110.59 KB
EN
Eval Board: BOM
December 01, 2020
More Details
EVBUM2559/D
0
Eval Board: Manual
1.32 MB
EN
Eval Board: Manual
October 01, 2019
More Details
