Evaluation Board | lighting-power-poe-gevb

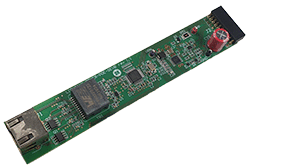

Power Over Ethernet (PoE) Power Module (90 Watts), Connected Lighting Platform
概览
The Power Over Ethernet (PoE) module adds reliable, high-power PoE connectivity to the Connected Lighting Platform. Featuring the IEEE 802.3bt compliant NCP1096 Interface Controller, the module supports up to 90 Watts of power.
Feature
- Based on the NCP1096
- Supports up to 90 Watts of power
- IEEE 802.3bt compliant, compatible with 802.3af, 802.3at injector power supplies
- Automatic MPS circuit to maintain power signature (Simulation model available as well)
- GreenBridge™ 2 rectifiers Output voltage ~56 V defined by PoE standard
- Power Device Class 8 required (duty cycle limited for lower classes)
