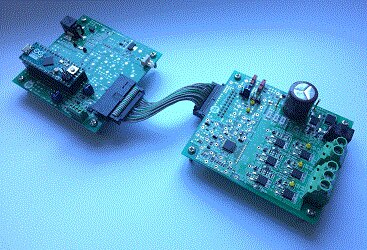

Evaluation Kit for LV8961H

概览

This evaluation kit is for the LV8961HUW is a high performance sinusoidal sensorless three-phase BLDC motor controller with predrivers for automotive applications. An integrated two-stage charge pump provides gate current for a wide range of ultra low Rdson NFETs. The device offers a rich set of system protection and diagnostic functions such as over-current, over-voltage, short-circuit, under-voltage, over-temperature and many more. It supports open-loop as well as closed-loop speed control with user configurable startup, speed setting and proportional/integral (PI) control coefficients, making it suitable for a wide range of motor and load combinations. With an in-built linear regulator for powering an external circuit and a watchdog timer, the LV8961HUW offers the smallest system solution footprint. An SPI interface is provided for parameter setting and monitoring the system health. With the operating junction temperature tolerance up to 175°C , the LV8961HUW is an ideal solution for stand-alone automotive and industrial BLDC motor controls.

Evaluation/Development Tools

产品

类型

Ref. Design

状况

Part Used

行动

Evaluation Kit for LV8961H

Evaluation Kit

No

Active

$300.000000

More Details
