The SMT Pin Adapter board (SMTPA) is a small PCB board that houses the SMT sensor and has through-hole pins to allow for use with standard sockets or probe clips. This product is useful for those needing a quick way to evaluate the C-Series SMT sensors without the need for specialist surface-mount soldering. While this is a "quick fix" suitable for many evaluations, it should be noted that the timing performance from this board will not be optimized and if the best possible timing performance is required, the MicroFC-SMA-30035 is recommended. The pin-out information is shown in the table below and the C-Series User Manual contains information on biasing the sensor. The SMTPA board electrical schematics are available to download in the SMT Board Reference Design document.

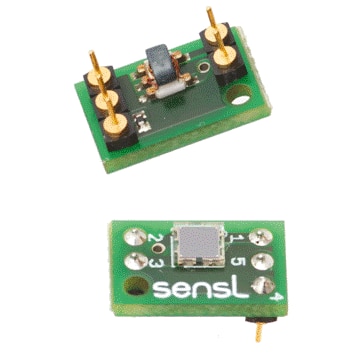

MicroFC-30035-SMT mounted on a pin adapter board
