Evaluation Board | NCV8715MXTBGEVB

XDFN6 EVALUATION BOARD

跳转至
概览 Evaluation/Development Tools

概览

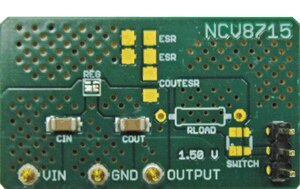

The demoboard supports the LDO regulator NCV8715 in XDFN6 package with fix output voltages: 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.0 V, 3.3 V and 5.0V. The ultra low quiescent current below 4.7 uA alows operation without Enable pin for low consumption state. For more information please see the datasheet.

  • Portable Equipment
  • Communication Systems
  • Other Battery Powered Applications
  • Operating Input Voltage Range: 2.5 V to 24 V
  • Fixed Voltage Options Available: 1.2 V to 5.0 V
  • Ultra Low Quiescent Current: Max. 4.7 uA Over Full Load andTemperature
  • ±2% Accuracy over Full Load, Line and Temperature Variations
  • PSRR: 52 dB at 100 kHz
  • Thermal Shutdown Protection
  • Current Limitation
  • Noise: 190 uVRMS from 200 Hz to 100 kHz
  • These are Pb−Free Devices

Evaluation/Development Tools

产品

类型

Ref. Design

状态

Part Used

行动

NCV8715MXTBGEVB

XDFN6 EVALUATION BOARD

评估板

No

Active

NCV8715MX12TBG,

NCV8715MX15TBG,

NCV8715MX18TBG,

NCV8715MX25TBG,

NCV8715MX30TBG,

NCV8715MX33TBG,

NCV8715MX50TBG

$37.800100

More Details
