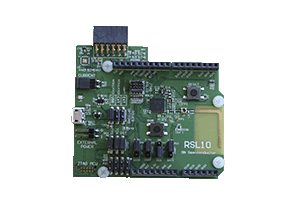

RSL10-002GEVB: Radio SoC evaluation board, version 1 (QFN based)

The RSL10 development board is used to easily develop Bluetooth® low energy technology-enabled applications based on the industry’s lowest power radio System-on-Chip (SoC).

Key Features:
  • Compliance with the Arduino form factor
  • Support for PMOD (e.g., J4 is a standard connector)
  • On-board J-Link feature for simple debugging
  • Alternate on-board SWJ-DP (serial-wire and/or JTAG) for ARM® Cortex® -M3 processor debugging
  • Access to all RSL10 peripherals via standard 0.1" headers
  • On-board 4-bit level translator to translate the LPDSP32 debug interface at a low voltage to a 3.3 V JTAG debugger
  • Antenna matching and filtering network
  • Integrated PCB antenna
评估/开发工具信息
产品 状况 Compliance 简短说明 所用产品 行动
RSL10-002GEVB Active
Pb-free
Radio SoC evaluation board, version 1 (QFN based) NCH-RSL10-101Q48-ABG NCP114ASN330T1G
NCV-RSL10-101Q48-AVG
技术文档
类型 文档标题 文档编号/大小 修订号
Eval Board: BOM RSL10-002GEVB Bill Of Materials (ROHS Compliant) RSL10-002GEVB_BOM_ROHS - 137 KB  0
Eval Board: Schematic RSL10-002GEVB Schematic RSL10-002GEVB_SCHEMATIC - 825 KB  0
Eval Board: Test Procedure RSL10-002GEVB Test Proceedure RSL10-002GEVB_TEST_PROCEDURE - 1378 KB  0
Eval Board: Gerber RSL10-002GEVB Gerber (ZIP Format) RSL10-002GEVB_Gerber - 5888 KB  1
Eval Board: Manual RSL10 Evaluation and Development Board User Manual EVBUM2529/D - 720 KB  2
Video Unboxing the RSL10 Sensor Development Kit with Future Electronics WVD17317/D
Software RSL10 Quuppa AoA RTLS Tag CMSIS Pack V.0.6.1 RSL10 Quuppa AoA RTLS Tag CMSIS Pack - 2562 KB Locked  4
Software RSL10 Quuppa Tag Demo User Manual RSL10 Quuppa Tag Demo User Manual - 840 KB  1
