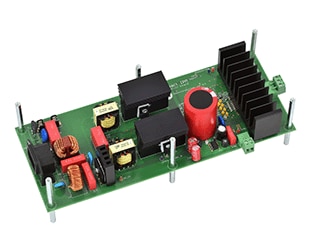

SECO-1KW-MCTRL-GEVB: 1kW 600V Industrial Motor Control Power Board with Compact Intelligent Power Module (IPM)

The SECO-1KW-MCTRL-GEVB is a complete reference design for three-phase motor drives, featuring the NFAQ1060L36T intelligent power module in a DIPS6 package. Rated for 230 Vac input and delivering up to 850W, all the necessary system blocks for a motor drive are part of the solution: EMC filtering and rectification stage, interleaved two-channel PFC, auxiliary power supplies, three-phase inverter and measurement and protection. The graphical user interface ensures an easy startup for evaluation purposes running voltage/frequency control. As part of the Motor Development Kit (MDK), the Compact IPM Motor Drive is compatible with the powerful Universal Controller Board (UCB) enabling high-end control strategies and AI capabilities for industrial motor control. The SECO-1KW-MCTRL-GEVB comprises of the 1kW power board and the hardware adaptor to the UCB.


  • Motor Development Kit (MDK)
  • Downloadable V/f and FOC control use cases for the UCB
  • 850W Intelligent Power Module (IPM) three-phase motor driver
  • VIN: 230 Vac,rms ± 15% (single-phase)
  • IOUT: Irms 10 ARMS per phase
  • Compatible with three-phase motors: PMSM, BLDC or ACIM
  • DIP/6 IPM NFAQ1060L36T, three-phase/10A with integrated gate drivers
  • Cross-conduction, overcurrent and thermal protection embedded in DIPS6 module
  • Plug-in connector interface for MCU cards (Arduino DUE footprint)
  • Voltage/frequency control strategy implemented
  • NCS2250SN2T3G: Push Pull Output Comparator implemented in Itrip protection system


  • White Goods (Washing Machines)
  • Industrial Fans
  • Industrial Automation
  • Industrial Motor Control
产品 状况 Compliance 简短说明 所用产品 行动
1kW 600V Industrial Motor Control Power Board with Compact Intelligent Power Module (IPM) GBU6K NCP1063AP060G
NCS2250SN2T1G NFAQ1060L33T
类型 文档标题 文档编号/大小 修订号
Eval Board: BOM SECO-1KW-MCTRL-GEVB Bill of Materials (ROHS Compliant) SECO-1KW-MCTRL-GEVB_BOM_ROHS - 165 KB  2
Eval Board: Schematic SECO-1KW-MCTRL-GEVB Schematic SECO-1KW-MCTRL-GEVB_SCHEMATIC - 1624 KB  2
Eval Board: Gerber SECO-1KW-MCTRL-GEVB Gerber Layout Files (Zip Format) SECO-1KW-MCTRL-GEVB_GERBER - 699 KB  1
Software SECO-1KW-MCTRL-GEVB Graphical User Interface and Binary File SECO-1KW-MCTRL-GEVB_GUI - 38192 KB
Video 安森美电机开发套件开箱 WVD17712/DCN
Eval Board: Manual Compact Intelligent Power Module (IPM) Motor Control Development Kit (MDK) 1 kW EVBUM2775/D - 2752 KB  2
Software SECO-1KW-MCTRL-GEVB Firmware (Zip Format) SECO-1KW-MCTRL-GEVB_FIRMWARE - 355 KB  0
