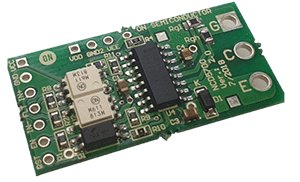

SECO-NCD5700-GEVB: Application daughter-card for NCD5700 Gate Drivers

The SECO-NCD5700-GEVB includes a high-current, stand-alone IGBT Gate Driver NCD5700, a single channel Phototransistor Optocoupler FODM217D, two high immunity logic Gate Output Optocouplers FODM611, and all the necessary drive circuitry. It also allows users solder any MOSFET or SiC MOSFET in a TO-247 high voltage THT package.

This daughter card is compatible with the SECO-GDBB-EVB gate drivers baseboard, which allows testing up to 3 half bridge daughter cards simultaneously and comparing performances.
产品 状况 Compliance 简短说明 所用产品 行动
SECO-NCD5700-GEVB Active
Application daughter-card for NCD5700 Gate Drivers FODM217D FODM611
类型 文档标题 文档编号/大小 修订号
Eval Board: Test Procedure SECO-NCD5700-GEVB Test Procedure SECO-NCD5700-GEVB_TEST_PROCEDURE - 1429 KB  0
Eval Board: Gerber SECO-NCD5700-GEVB Gerber Layout Files (Zip Format) SECO-NCD5700-GEVB_GERBER - 49 KB  0
Eval Board: BOM SECO-NCD5700-GEVB Bill of Materials (ROHS Compliant) SECO-NCD5700-GEVB_BOM_ROHS - 30 KB  0
Eval Board: Manual NCD5700 mini Evaluation Board User's Manual EVBUM2765/D - 2595 KB  0
