SECO-NCD57000-GEVB: Application daughter-card for NCD57000 IGBT gate driver

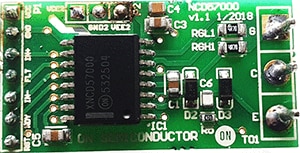

The SECO-NCD57000-GEVB includes an isolated high current and high efficiency IGBT Gate Driver NCD57000 and all the necessary drive circuitry. The EVB also includes The ability to solder any MOSFET or SiC MOSFET in a TO-247 high voltage package in both SMD and THT.
This daughter card is compatible with the SECO-GDBB-EVB gate drivers baseboard, which allows testing up to 3 daughter cards simultaneously and comparing performances. |
评估/开发工具信息
| 产品 | 状况 | Compliance | 简短说明 | 所用产品 | 行动 | |
|---|---|---|---|---|---|---|
| SECO-NCD57000-GEVB | Active |
|
Application daughter-card for NCD57000 IGBT gate driver | NCD57000DWR2G |
技术文档
| 类型 | 文档标题 | 文档编号/大小 | 修订号 |
| Eval Board: Gerber | SECO-NCD57000-GEVB Gerber Layout Files (Zip Format) | SECO-NCD57000-GEVB_GERBER - 54 KB | 0 |
| Eval Board: BOM | SECO-NCD57000-GEVB Bill of Materials (ROHS Compliant) | SECO-NCD57000-GEVB_BOM_ROHS - 26 KB | 0 |
| Eval Board: Test Procedure | SECO-NCD57000-GEVB Test Procedure | SECO-NCD57000-GEVB_TEST_PROCEDURE - 1338 KB | 0 |
| Eval Board: Manual | SECO-NCD57000-GEVB Getting Started Guide | SECO-NCD57000-GEVB_GETTING_STARTED - 1903 KB | 1 |
| Eval Board: Manual | NCD57000 mini Evaluation Board User's Manual | EVBUM2748/D - 2175 KB | 0 |
