SECO-RANGEFINDER-GEVK: SiPM Direct Time of Flight (dToF) LiDAR

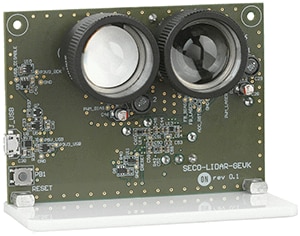

The Direct Time of Flight (dToF) SiPM LiDAR Platform is a single point range finder development kit for cost-optimized industrial and commercial applications. The kit is based on the latest NIR SiPM from ON Semiconductor (RB series) and integrates all the essential sub-systems for the application involving laser and reference circuit (Tx), receiving circuit (Rx), power management systems, and core FPGA and UART communication. The kit is FDA certified and includes a multifunctional GUI enabling a complete evaluation of the range-finding performance as well as the adjustment of system variables such as the buffer number of pulses or the bias voltage for the SiPM-RB photomultiplier.
特性和应用

特性

  • Direct ToF operation for single point applications
  • > 0.11 m to 23 m detectable range
  • Out of the box operation with user-friendly GUI with adjustable system variables
  • Optimized system cost
  • Time to Digital Conversion (TDC)
    • FPGA based (ice3)
    • ~ 85ps bin width
    • Automatic TDC calibration (FPGA reference clock)
  • Power supply
    • Different supply options
      • USB = 5V
      • PMOD connector = 3.3V
  • Laser and optics
    • RB-Series SiPM detector
    • 905nm laser diode transmitter
    • 650-1050nm coated BK7 Plano-convex lenses
      • maximize distance measurement
    • 905±5nm band pass optical filter (FWHM: 30±5nm) for RX
      • highest sensitivity in selected spectrum
  • Regulations
    • Complies - laser safety standard IEC / EN 60825-1:2014 and 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 56
    • FDA Certified
  • Software
    • Software adjustable settings for variety of industrial and IoT applications
    • FPGA-based Time-to-Digital Convertor (TDC), readout, communication interface and control of two regulated bias supplies

应用

  • Indoor Navigation and range-finding (up to 23 m)
  • Collision detection
  • 3D Mapping
评估/开发工具信息
产品 状况 Compliance 简短说明 所用产品 行动
SECO-RANGEFINDER-GEVK Active
Pb-free
SiPM Direct Time of Flight (dToF) LiDAR BAS16HT1G ,  BAT54T1G ,
BC817-40WT1G ,  BC856BWT1G ,
BSS138LT1G ,  EMI2121MTTAG ,
FPF2110 ,  FQT13N06LTF ,
LM2903DMR2G ,  MBR120LSFT1G ,
MICRORB-10010-MLP-TR ,  MMSD701T1G ,
NBA3N012CSNT1G ,  NCP161ASN330T1G ,
NCP170BXV120T2G ,  NCP170BXV250T2G ,
NCP300LSN27T1G ,  NCP81074ADR2G ,
NCV308SN330T1G ,  NSVF4015SG4T1G
技术文档
类型 文档标题 文档编号/大小 修订号
User's Manual SiPM dToF LiDAR Platform User Guide UM70015/D - 43373 KB  3
Eval Board: Gerber SECO-RANGEFINDER-GEVK Gerber Layout Files (Zip Format) SECO-RANGEFINDER-GEVK_GERBER - 11634 KB  1
Eval Board: Schematic SECO-RANGEFINDER-GEVK Schematic SECO-RANGEFINDER-GEVK_SCHEMATIC - 1088 KB  0
Software SECO-RANGEFINDER-GEVK Graphical User Interface SECO-RANGEFINDER-GEVK_GUI - 19773 KB Locked  2
Conformance Report SiPM dToF LiDAR Platform BS EN 60825-1:2014 Laser Classification Report TND6342/D - 390 KB  0
Video What is Industrial Rangefinding? WVD17688/D
Video SiPM dToF LiDAR Platform GUI Walkthrough WVD17715/D
Software LiDAR Range Finder FPGA HDL LiDAR Range Finder FPGA HDL - 177 KB Locked  1
