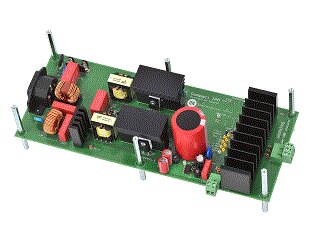

STR-1KW-MDK-GEVK: 1kW 600V Industrial Motor Development Kit (MDK) with Compact Intelligent Power Module (IPM) board and Universal Controller Board (UCB)

The STR-1KW-MDK-GEVK is a complete reference design for three-phase motor drives, featuring the NFAQ1060L36T intelligent power module in a DIPS6 package, and part of the Motor Development Kit (MDK). Rated for 230 Vac input and delivering up to 850W. All the necessary system blocks for a motor drive are part of the solution: EMC filtering and rectification stage, interleaved two-channel PFC, auxiliary power supplies, three-phase inverter and measurement and protection. The graphical user interface ensures an easy startup for evaluation purposes running voltage/frequency control. As part of the MDK the Compact IPM power module motor drive is compatible with the powerful Universal Controller Board (UCB) enabling high-end control strategies and AI capabilities for industrial motor control. The STR-1KW-MDK-GEVK comprises of the SECO-1KW-MCTRL-GEVB, the hardware adaptor to the UCB and the Universal Controller Board (UCB).

• The SECO-1KW-MCTRL-GEVB is orderable separately as well.



  • Motor Development Kit (MDK)
  • Compatible with the Universal Controller Board (UCB) FPGA/ARM
  • Fully compatible with Xilinx® development tools for Zynq®-7000
  • Strata Enabled
  • Downloadable V/f and FOC control use cases for the UCB
  • 850W Intelligent Power Module (IPM) three-phase motor driver
  • VIN: 230 Vac,rms ± 15% (single-phase)
  • IOUT: Irms 10 ARMS per phase
  • Compatible with three-phase motors: PMSM, BLDC or ACIM
  • DIP/6 IPM NFAQ1060L36T, three-phase/10A with integrated gate drivers
  • Cross-conduction, overcurrent and thermal protection embedded in DIPS6 module
  • Plug-in connector interface for MCU cards (Arduino DUE footprint)
  • Voltage/frequency control strategy implemented
  • NCS2250SN2T3G: Push Pull Output Comparator implemented in ITRIP protection system
  • Use case pre-loaded and Strata enabled available for a quick-start evaluation
  • Xilinx® development tools and environments are available for the MDK, such as Vitis and Vivado to program the FPGA


  • White Goods (Washing Machines)
  • Industrial Fans
  • Industrial Automation
  • Industrial Motor Control
产品 状况 Compliance 简短说明 所用产品 行动
1kW 600V Industrial Motor Development Kit (MDK) with Compact Intelligent Power Module (IPM) board and Universal Controller Board (UCB) 1N5406RLG FCPF125N65S3
NCP1063AP060G NCP1632DR2G
NCS2003SN2T1G NFAQ1060L36T
类型 文档标题 文档编号/大小 修订号
Eval Board: BOM STR-1KW-MDK-GEVK Bill of Materials (ROHS Compliant) STR-1KW-MDK-GEVK_BOM_ROHS.pdf - 484 KB  0
Eval Board: Gerber STR-1KW-MDK-GEVK Gerber Layout Files (Zip Format) - 10242 KB  0
Eval Board: Schematic STR-1KW-MDK-GEVK Schematic STR-1KW-MDK-GEVK_SCHEMATIC.pdf - 1642 KB  0
Eval Board: Manual STR-1KW-MDK-GEVK User Guide STR-1KW-MDK-GEVK_USER_GUIDE.pdf - 2386 KB  0
