STR-NCL30160-1A-LED-GEVB: Strata Enabled NCL30160 1A LED Driver

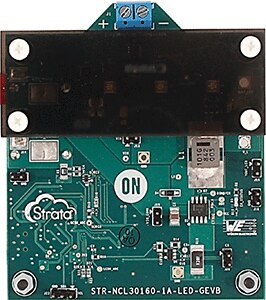

The STR-NCL30160-1A-LED-GEVB provides an evaluation board for the NCL30160 1A LED driver using Strata Developer Studio. The NCL30160 is an NFET hysteretic step-down, constant-current driver for high power LEDs that offers fast load transient response, PWM LED dimming, resistor-programmable LED current, shorted LED protection, under-voltage lockout and thermal shutdown in an SOIC-8 package. This evaluation board is used with Strata to control the NCL30160 and monitor telemetry such as input voltage/current, LED voltage/current, and temperature. See the Strata webpage at www.onsemi.com/strata for more details!
特性和应用

特性

  • Integrated 1A/50mΩ MOSFET
  • VIN Range 6.3V to 40V
  • Shorted LED Shutdown Protection
  • Up to 1.4 MHz Switching Frequency
  • No Control Loop Compensation Required
  • Adjustable LED Current
  • Single Pin Brightness and Enable/Disable Control Using PWM
  • Supports All−Ceramic Output Capacitors and Capacitor−less Output
  • Thermal Shutdown Protection
  • Capable of 100% Duty Cycle Operation
  • Pb−Free Device

应用

  • LED Driver
  • Constant Current Source
  • General Illumination
  • Industrial Lighting
评估/开发工具信息
产品 状况 Compliance 简短说明 所用产品 行动
STR-NCL30160-1A-LED-GEVB Active
Pb-free
Strata Enabled NCL30160 1A LED Driver NCL30160DR2G
技术文档
类型 文档标题 文档编号/大小 修订号
Software Strata Setup Software for Microsoft Windows Strata setup Windows - 102988 KB Locked  3.1.0.122
Eval Board: Schematic STR-NCL30160-1A-LED-GEVB Schematic STR-NCL30160-1A-LED-GEVB_SCHEMATIC - 1193 KB  0
Eval Board: Gerber STR-NCL30160-1A-LED-GEVB Gerber Layout Files (Zip Format) STR-NCL30160-1A-LED-GEVB_GERBER - 4105 KB  0
Eval Board: Test Procedure STR-NCL30160-1A-LED-GEVB Test Procedure STR-NCL30160-1A-LED-GEVB_TEST_PROCEDURE - 452 KB  0
Eval Board: BOM STR-NCL30160-1A-LED-GEVB Bill of Materials (ROHS Compliant) STR-NCL30160-1A-LED-GEVB_BOM_ROHS - 71 KB  0
Video 1A LED Driver EVB | Strata WVD17395/D
Eval Board: Manual STR-NCL30160-1A-LED-GEVB User Guide STR-NCL30160-1A-LED-GEVB_user_guide - 996 KB  0
Software Strata Online Setup Software for Microsoft Windows Strata setup Windows online - 24517 KB Locked  3.1.0.122
